aera 760, GPS

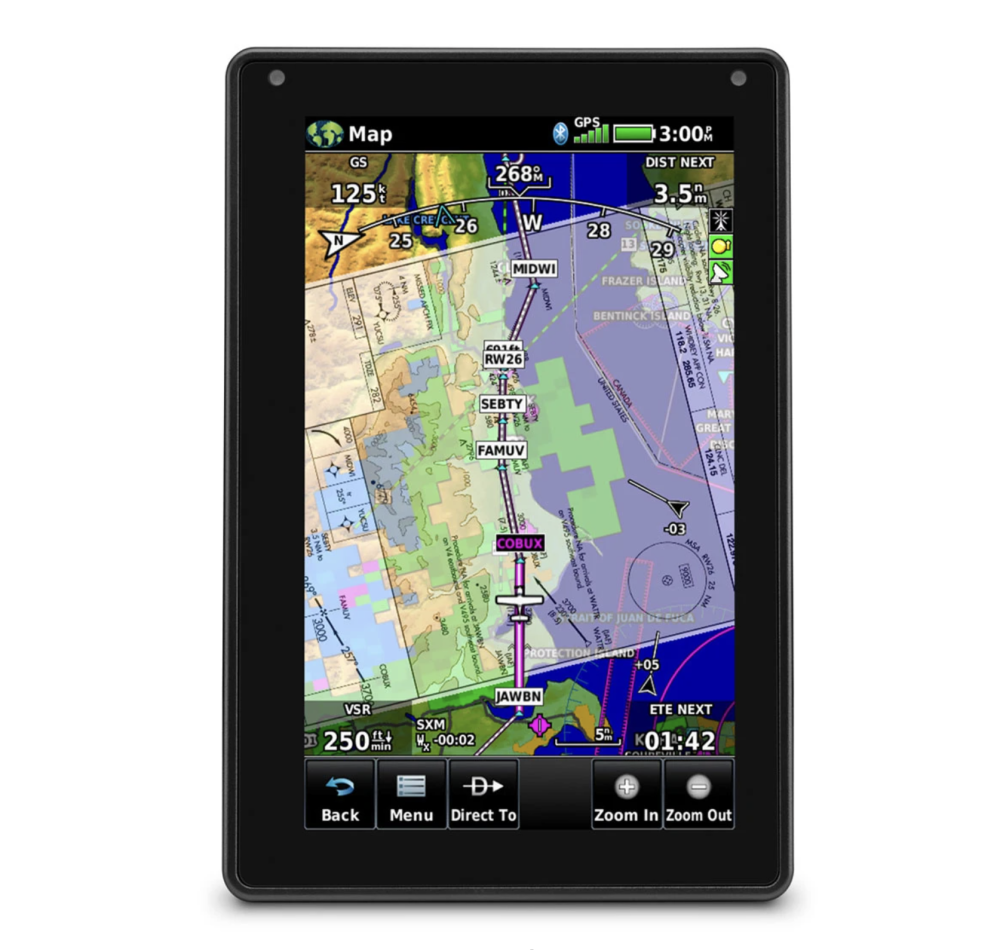

The display is 7-inch touchscreen that can be positioned in portrait or landscape orientations. The GPS and GLONASS satellite constellations displays customizable aviation maps that are rich, interactive and dynamically drawn. Creating flight plans is easy by entering a starting waypoint and destination. Then you insert segments, including airways as well as IFR departures, arrivals and approaches. It is possible to enter a direct course by a Direct-to key on the screent course for any selected waypoint. A menu of nearest airports and flight plan waypoints makes for easy entry.

You can easily determine your position on VFR flights and view ground references including airports, cities, terrain, obstacles and more on the dynamic map display. View georeferenced VFR sectional charts for Europe and use IFR map mode to display and navigate on high or low enroute airways. Touch to view minimum enroute altitudes and distances between intersections. By interfacing the aera 760 navigator with the GFC™ 500 digital autopilot you can transfer flight plans wirelessly to select Garmin systems.

Patented TargetTrend relative motion tracking on aera 760 gives pilots faster, more intuitive ways to judge traffic closure rates and trajectories for identifying the greatest threat.

Providing a dynamic display of ADS-B-equipped aircraft and ground vehicles, this technology helps pilots avoid traffic conflicts within the airport environment.

Uppon landing, georeferenced SafeTaxi diagrams on aera 760 automatically help track your location on hundreds of airports and even identify published hot spots.

Garmins patented Smart Airspace guidance highlights the airspace nearest your current altitude so you can quickly identify your location relative to the airspace around you.

3D Vision technology gives you a virtual 3D behind-the-aircraft perspective view of surrounding terrain, obstacles and airports as well as traffic (when equipped with ADS-B “In”). View SVX™ synthetic vision by panel-mounting your aera 760 and using its built-in AHRS or by connecting it to another device with an AHRS, such as a GDL 52 series datalink.

See your position above terrain and obstacles on the map and profile view. Obstacles within 1,000’ (or a pilot-customizable height) are highlighted yellow, while obstacles within 100’ are highlighted red.

Physical dimensions: 7.29”W x 4.85”H x 0.91”D
Display size: 7" diag (17.8 cm)
Display resolution, WxH: 480 x 800; portrait and landscape orientation
Display type: touchscreen WVGA color TFT with white backlight
Weight: 19.8 oz (561 g)
Battery: Rechargeable lithium-ion
Battery life: Up to 4 hours during most daytime conditions, (80% backlight)
SBAS/WAAS/GLONASS receiver: high-sensitivity with WAAS position accuracy
Voltage range: 10-35
Route Data: VFR/IFR
USB connection: yes (USB-C)
Expandable memory: yes (microSD™ cards)

In the box
aera 760
Mount cradle with CLA power cable
USB-C 27W AC adapter
USB-C to USB-C cable
USB-C to USB-A cable
Quick start manual and related documentation
